DIGITAL DISPLAY PROPORTIONAL VALVE DRIVERS
LE PG X STANDARD SPECIFICATIONS
Operating voltage:
9 to 36 VDC
Maximum output current:
3.00 Amps
Input Signal:
5V, 10V, 4 to 20mA
Maximum ramp time:
99.5 Sec
PWM / Dither Frequency:
40-450Hz
Linearity:
1%
Operating Temperature:
-40 to +75 Celsius
Protection Grade:
IP65
Dimensions:
91mm x 40mm x 32 mm
APPLICATIONS
Street Sweeper - Lynch's LE PG X can be connected to the hydraulic system of a municipal street cleaner to proportionally control the lifting and lowering of the rotating broom.
Truck Boom - The LE PG X will give the user precise control of the movement of a truck boom to avoid injury due to unwanted movement or speed.
LE PG X
Direct DIN solenoid mount PG9 cable gland connection.

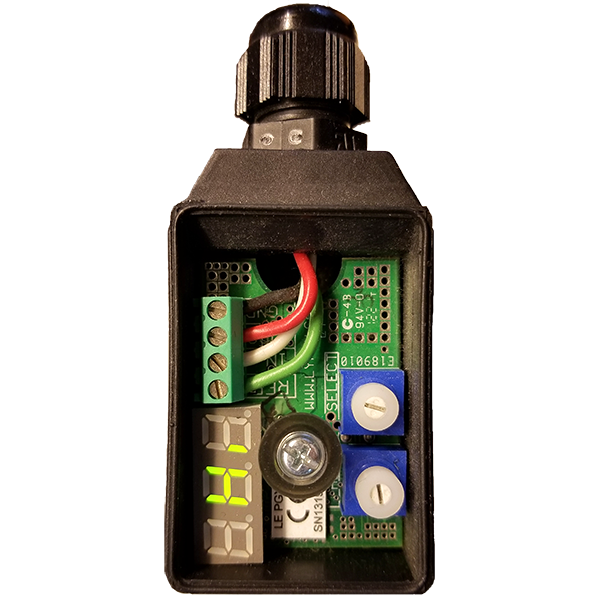

The LE PG X supplies a solenoid with current proportional to the input signal from a potentiometer, joystick, PLC or other control system. It is a single solenoid proportional valve driver that mounts directly on a DIN coil with a PG9 cable gland connection.
FEATURES AND BENEFITS
- Microcontroller design.
- Independent adjustments (Incl. ramp up and ramp down).
- 3 digit extra bright seven segment LED display.
- Large, easy-to-use adjustments and readout.
- Display and adjust actual values (current & voltage).
- Wide range of supply voltage.
- User selectable input type through menu setup (ex: 0 to 5V, 0 to 10V, 4 to 20mA).
- Wide ramp time range (0 to 99.5 sec).
- Simple control with analog input, locally supplied reference voltage.
- Energy efficient PWM circuit, no heat sink required.
- Electronic limiting circuit/ short circuit proof.
- Reverse polarity, command input protection.
- Load can be connected and disconnected live.
- Easy troubleshooting.
Set-up Video
This product has been designed and tested to meet specific standards outlined in the European Electromagnetic Compatibility Directive (EMC) 2004/108/EC
Emission: EN 61000-6-4: 2007, EN 55011:2009
Immunity: EN 61000-6-2: 2005, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-4, EN 61000-4-8:2001
RoHS: EN 50581:2012
Emission: EN 61000-6-4: 2007, EN 55011:2009
Immunity: EN 61000-6-2: 2005, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-4, EN 61000-4-8:2001
RoHS: EN 50581:2012
